Product Description
Product Spec Sheet:

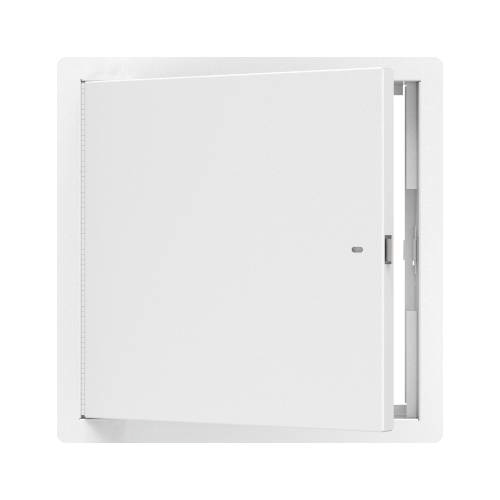

32" x 32" Fire-Rated Non-Insulated Access Panel
Enjoy simplicity and ease of access with the addition of the BAC-FRN 32" x 32" Fire-Rated Non-Insulated Access Panel by Best Access Doors. This lightweight, non-insulated access door provides effortless access to utilities within fire-rated walls, where thermal insulation is not a requirement.
This model simplifies access with a convenient ring or tool key-operated latch, each included for your preference. BAC-FRN features a spring-operated self-closing mechanism, ensuring a secure closing process in accordance with NFPA 80 standards.
BAC-FRN is a practical solution for applications within commercial buildings, industrial facilities, storage areas, emergency exits, and all other venues where secure and convenient access is required.
Take a Closer Look at BAC-FRN
Fire-Rated: BAC-FRN is a fire-rated access door that has achieved a fire rating of up to 2 hours on rated vertical wall assemblies, certified to U.L. standards.
Self-Latching: The BAC-FRN maintains a spring mechanism to ensure hands-free and hassle-free operation in accordance with NFPA 80 standards.
Simple Installations: BAC-FRN features a 1" exposed flange for easy fittings and installations for a hassle-free process.
Durable Design: Best Access Doors has constructed BAC-FRN of durable 16-gauge cold rolled steel, forming a robust and rust-resistant unit with minimal maintenance requirements.
Full Door Extension: BAC-FRN has a durable continuous piano hinge, allowing a door that extends beyond standard hinges.
Helps Towards LEED V4 Credits: This access door will help obtain LEED certification, tax credits, and benefits eligibility.
Where restricted access to internal components is necessary, you can substitute BAC-FRN's standard tool key-operated cam and latch (ring-operated slam latch also included) for a;
- Handle-operated slam latch
- Mortise preparation for cylinder (cylinder optional)
- Hex head slam latch
- Mortise deadbolt lock
Please contact our team to specify your preference, if necessary.
Standard units over 12 "x 12" also have an inside panel release, providing convenient and hassle-free access for entries and exits.
Specifications:
- Dimensions: 32" x 32"
- Material: 16-gauge cold rolled frame and door
- Hinge: Continuous piano hinge
- Locking Mechanism: Self-latching tool-key operated slam and ring-operated slam latch; both included
- Flange: 1" exposed flanges of cold rolled steel
- Frame: 2-½" in depth made of cold rolled steel
- Rough Opening: Door sizes + ¼" + 6 mm
- Finish: 16-gauge cold rolled steel with high-quality white powder coat primer
Note: Masonry anchors included - Packaging: Individually wrapped, 1 door per box
Fire rated access doors, for vertical use, are subject to the following:
Vertical wall assemblies
Fire rated access doors, for vertical use, are subject to the following:
Certification
UL 10B (2009), NFPA 252 (2012), CAN/ULC S104 (R1985), CAN/ULC S104 (2010).
Rating Achieved
1-½ hours, neutral/negative pressure
Maximum size
36" x 36" (914 mm x 914 mm), maximum area of 1296 in², tolerance on height and width limitation is 3" (76mm) if the area does not exceed 1296 in².
Temperature rise
No rating achieved
Experience highly secure, durable, and convenient access by adding 32" x 32" Fire-Rated Non-Insulated Access Panels by Best Access Doors.
